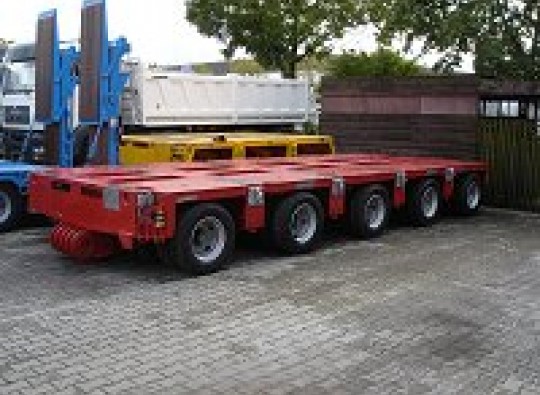

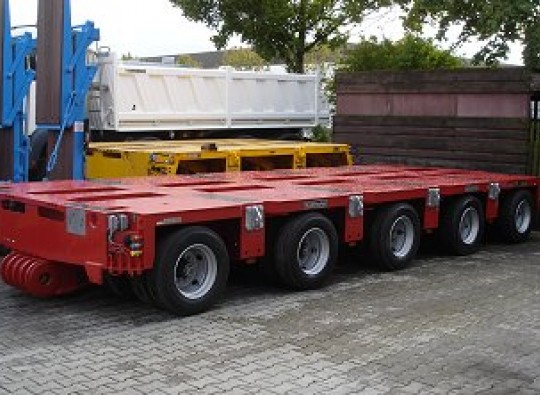

Goldhofer - THP SL 5

  • Used
  • 86899 Landsberg / GERMANY
  • Stuerzer

POA

Additional Notes from seller

Manufacturer
Goldhofer
Type
THP SL 5
Registration Date
neu, n.n.zugel. new / nuevo
Unloaded Weight
16600 kg
Laden Weight
82000-170000 kg
Tires
215 / 75 R 17,5
Sonstiges
Main features
- in longitudinal- transversely combination modular trailers
- middleframe with integrated air- and hydraulicoiltanks
- front and rear optimized bolt-coupling-lashes for length combination
- two twin arranged tires with swing axle wheelsets with a total of 8 wheels
each axle-line
- axles with ball bearing race ring mounted on rear end
- hydraulic axle compensation +/- 300 mm, hydropneumatic suspension with gas
accumulators and hose-rupture safety-valve on each
axle
- in the running gear integrated, hydromechanical 2-circuit-Allwheel-force
steering with a max. steering angle of the axles of
+/- 55°,
- 2-cunductor-Allwheel-air brake and spring-loaded parking brake
- hydr. pin joint for THP/SL coupling

ABS/AGS
