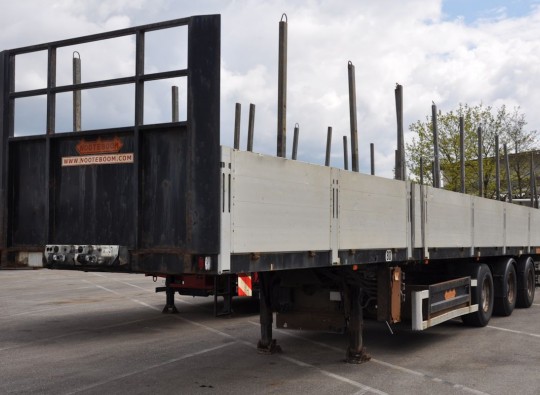

Nooteboom - OVB-42-03V

  • 2005
  • Landsberg
  • Stuezer

POA

Additional Notes from seller

Unloaded Weight
10960 kg
Laden Weight
42000 kg
Tires
385/65R22,5 160/158L
Sonstiges
Vehicle with air suspension and hydraulic dual-circuit power steering
(turntable)

load area
- Design "Plateau" 1 single telescopic
- Mechanical seatposts
- Corners forward 90 °
- Front under integrated articulation
- Ball slewing ring bearing saddle plate with replaceable 2 "-Königszapfen and
adjustable steering wedge
- Final Traverse as stable underride guard
- Clearance radius front 1960 mm
- Clearance radius rear 2350 mm
- Aluminum sides
- Stanchions with stanchion pockets

landing gear
- 3-axle chassis with air suspension incl Lifting and lowering.
- SAF axles with adjustable taper roller bearings
-Radstand 1,840 mm
- First axle liftable

braking system
- Two-line four-wheel pneumatic brake system with membrane brake cylinders
- Automatic, load-dependent brake (ALB)
- Automatic slack adjuster (AGS)
- The parking brake using spring-loaded cylinders
- ABV (ABS)

load area
LxB 13,450 x 2,520 mm
teleskopierbar 1 x 7,950 mm to 21,400 mm
Loading height laden. 1,370 mm
bel in saddle height. 1,160 mm

steering
1 to 3 axis hydro-mechanically steered (2-circuit steering) (fifth-wheel
steering)
