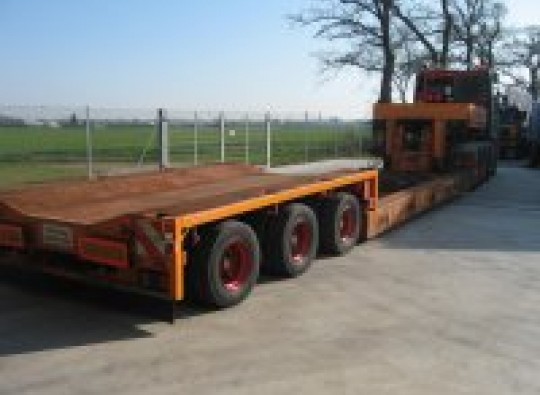

Goldhofer - STZ-VL 3-34/80 A

  • 1996
  • 8004992
  • Landsberg
  • Stuezer

POA

Additional Notes from seller

Unloaded Weight
16490 kg
Laden Weight
55000 kg
Tires
235 / 75 R 17,5
Sonstiges
Goldhofer STZ-VL 3-34-80 A

- semi-trailer, lowloader with detacheable gooseneck,
- telescopic extendable lowbed-bridge / vesselbridge
- hydro-mechanical force-steering

gooseneck 25 tons
- gooseneck hydraulically lift- and lowerable, detachable, continuously
adustable
- platform with combined chequered and bulb plate floor
- hydro-mechanical force-steering in 2-circuit execution
- 5th wheel plate mounted on ball bearing race ring, adjustable steering wedge,
- exchangeable 2" or 3.5" king pin

lowbed bridge / vesselbridge
- lowbed bridge or vesselbridge, telescopic lowbed with side extension beams
- dimensions (LxW) 6000 x 2750, extendable by approx. 3600 mm
- construction height 380 mm
- connection with gooseneck in front by clutch coupling
- height of ballasted lowbed platfrom 540 mm

chassis 30 tons
- air suspension 3-axle chassis
- BPW-axles, consisting of 3 hydro-mechanically force-steered steering axles
- prism in chassis. width ca.850 mm, depth ca. 125 mm
- wheelbase 2 x 1310 mm

brakes system
-2-line, all-wheel-compressed-air-brake-system with membrane brake cylinders
- spring-loaded parking break mechanism

Technical Data
net weight 16490 kg
permissible weight 55000 kg
pay load 35810 kg

gooseneck
loading platform (length x width) 3250 x 2440 mm
saddle heigth 1350 mm

loading platform
loading platform (length x width) 6000 + 3600 x 2750 mm
telescopically extendible up to 9600 mm
loading height 540 mm (+/- 100 mm)

chassis
loading platform (L x W) 4490 mm x 2750 mm
loading height (ballasted) circa 1080 mm (+/- 100 mm)

steering
1st and 3rd axle hydromechanically force-steered (axles of steering arm)
2-circuit steering
