Goldhofer - THP-ST 5

  • 86899 Landsberg / GERMANY
  • Stuerzer


Additional Notes from seller

Registration Date
1500+1500+1500+1500 mm
Unloaded Weight
17000 kg
Laden Weight
60000 kg bei 12 t Achslast180000 kg bei 36 t Achslast kg
215/75 R 17,5

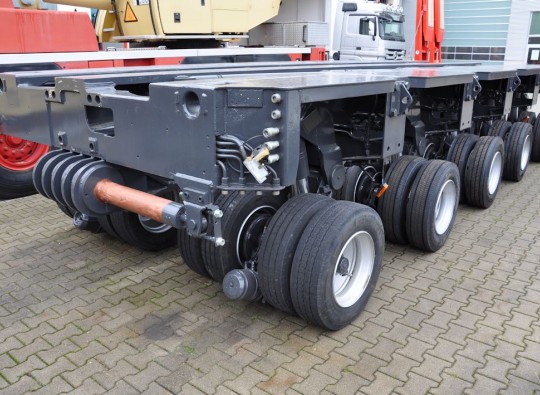

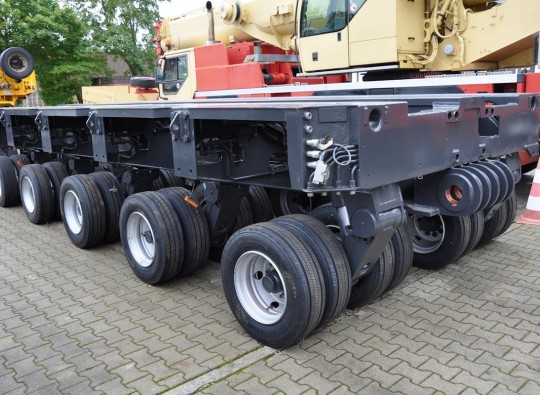

Goldhofer Heavy Duty Chassis Module type THP/ST 5
-Loading 7,500 mm x 3,000 mm
-Height 1,120 +/-300
-Combined suspension module in longitudinal and transverse direction
-box-shaped middle frame with integrated air and hydraulic oil tanks
-Front and rear optimized stud Laschenkupplung for longitudinal combinations
-Two single-tyred pendulum axle units with a total of 8 wheels per axle line
-Axle units mounted by Turmlager on the vehicle frame
-Hydraulic AXLE Compensation +/-300mm, hydropneumatic gas pressure storage
suspension and hose breakage safety valves at all
Axle units
-integrated in the chassis, hydromechanical 2-circuit-all-wheel-drive steering
with maximum steering impact of the axle units of 60 °
-Counter-steering in the undercarriage
-2-line four-wheel air brake and spring storage-parking brake
Hydr. Locking Bolt
-Tare weight approx. 17,000 kg

Technical data

Speed 1 km/h 5 km/h 50 km/h 80 km/h
Technical axle load per axle 36,000 kg 34,000 kg 18,400 kg 16,400 kg
Tare weight (without accessories) 17,000 kg 17,000 kg 17,000 kg 17,000 kg
Maximum payload 163,000 kg 153,000 kg 75,000 kg 65,000 kg
