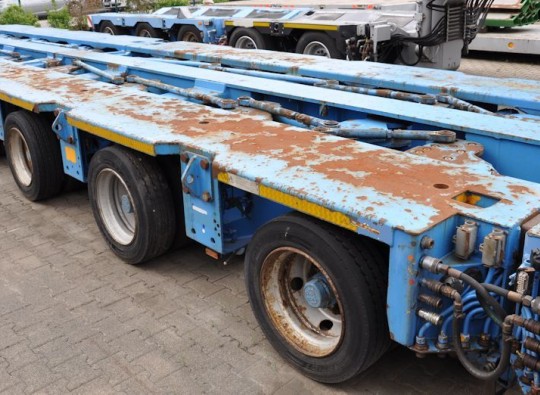

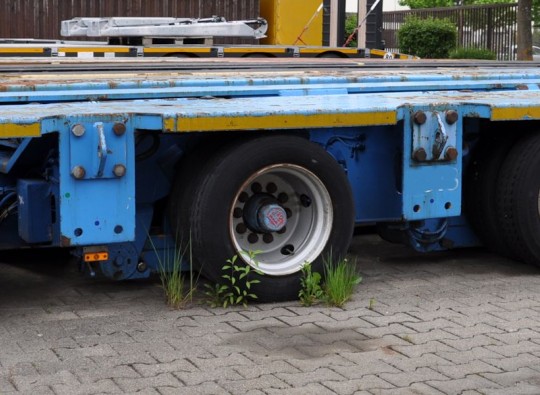

Goldhofer - THP-LTSO 4

  • 2002
  • 86899 Landsberg / GERMANY
  • Stuerzer

POA

Additional Notes from seller

Registration Date
10.07.2002
Wheelbase
1500+1500+1500 mm
Unloaded Weight
11.400 kg kg
Laden Weight
48000/92000 kg
Tires
205/65R17,5
Sonstiges
Key Features
-Combined suspension module in longitudinal and transverse direction
-box-shaped middle frame with integrated air and hydraulic oil tanks
-Front and rear optimized stud Laschenkupplung for longitudinal combinations
-Two twin-tyred pendulum axle units with a total of 8 wheels per axis
-Axle units mounted by Turmlager on the vehicle frame
-Hydraulic AXLE Compensation +/-250 mm, hydropneumatic gas pressure
storage-suspension and hose breakage-safety valves
on all axle units
-integrated in the chassis, hydromechanical 2-circuit-all-wheel-drive steering
with maximum steering impact of the axle units of +/-60 °
-2-line four-wheel air brake and spring storage-parking brake
Hydr. Locking Bolt
-ABS
-BPW axles with drum brake

Technical data

Speed 1 km/h: technical axle load per axle 23,000 kg/tare weight (without
accessories) 11,400 kg/maximum payload 80,600 kg;
Speed 5 m/h: Technical axle load per axle 23,000 kg/tare weight (without
accessories) 11.4000 kg/maximum payload 80,600 kg;
Speed 50 km/h: technical axle load per axle 13,800 kg/tare weight (without
accessories) 11,400 kg/maximum payload 43,800 kg;
Speed 80 km/h: technical axle load per axle 12,400 kg/tare weight (without
accessories) 11,400 kg/maximum payload 38,200 kg;
Tyre 205/65 R 17.5
